Energy Storage Safety Monitoring - Thermal Runaway Detection

Energy storage power stations, especially those using lithium-ion batteries, require robust safety warning and monitoring systems to prevent and mitigate potential hazards like thermal runaway, overcharging, and mechanical failures. Effective safety monitoring systems in these stations are essential for ensuring the longevity and safety of the storage system.

Thermal runaway sensors play a critical role in the safety warning and monitoring systems. These sensors are designed to detect the early signs of thermal runaway—a condition where an increase in temperature leads to a self-sustaining and uncontrollable temperature rise, which can result in fires or explosions.

Jinan Rainbow Technology provide Energy Storage Sensor One-stop Solutions, based on a variety of sensors independently developed by our company.

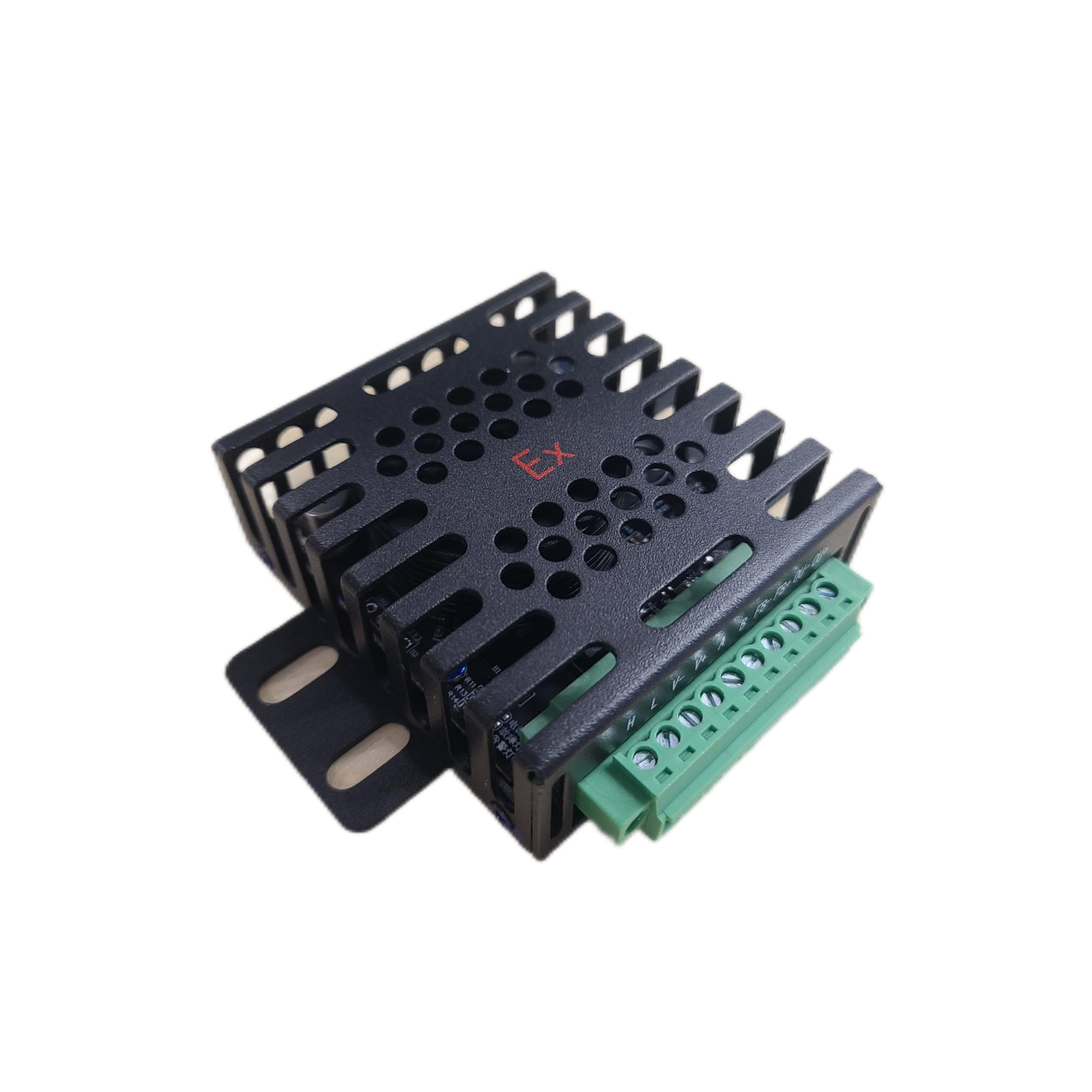

Multi in one battery thermal runaway sensor (H2+CO+VOC+Smog+Temperature)

Hydrogen detection - H2 sensor

VOC detection - VOC sensor

CO detection - CO sensor

Aerosol detection - Thermal runaway aerosol monitoring sensor

Role of Thermal Runaway Sensors in Energy Storage Safety Systems:

Early Detection:
Temperature Monitoring: Thermal runaway sensors are embedded within battery cells or modules to monitor temperature in real-time. They can detect abnormal temperature increases before they reach critical levels, providing early warnings to operators.
Critical Threshold Alerts: When the temperature surpasses a predefined safety threshold, the sensor triggers an alert. This allows for immediate action, such as shutting down the affected battery module or activating cooling systems.

Integration with Battery Management System (BMS):
Data Feedback: The sensors feed temperature data into the BMS, which continuously monitors the state of each battery cell. The BMS can then make decisions based on this data, such as balancing the load, adjusting the charge/discharge rate, or isolating problematic cells.
Automated Response: If thermal runaway is detected, the BMS can automatically disconnect the affected battery module, preventing the thermal event from spreading to other cells or modules.

Coordination with Fire Suppression Systems:
Triggering Fire Suppression: In the event of thermal runaway, the sensor can trigger the activation of fire suppression systems. This could involve releasing inert gases, water mist, or other fire-extinguishing agents to contain the situation.
Localized Suppression: By pinpointing the exact location of the overheating cell, the system can direct suppression efforts more efficiently, minimizing damage and preventing the fire from spreading.

Integration with Remote Monitoring Systems:
Real-Time Alerts: Thermal runaway sensors can be integrated into a remote monitoring system, allowing operators to receive real-time alerts and data, even when they are not on-site.
Data Logging for Analysis: The temperature data can be logged for future analysis, helping to identify patterns that could predict potential issues before they occur.

Preventive Maintenance and Safety Assurance:
Routine Checks: The temperature data from these sensors can be used in routine maintenance checks, ensuring that any deviations from normal operating conditions are addressed before they escalate.
System Health Monitoring: Continuous monitoring helps in assessing the overall health of the energy storage system, identifying cells that might be nearing failure, and replacing them before they cause a thermal event.

Advantages of Implementing Thermal Runaway Sensors:
Enhanced Safety: The primary benefit is the significant enhancement of safety, reducing the risk of catastrophic failures in energy storage systems.
Increased System Longevity: By preventing thermal runaway and other related issues, these sensors help extend the lifespan of the battery modules.
Regulatory Compliance: Many safety standards and regulations for energy storage systems require the inclusion of thermal runaway detection mechanisms, making these sensors essential for compliance.
Cost Savings: Early detection and prevention of thermal events reduce the potential for costly damages and downtime.

In summary, thermal runaway sensors are a vital component of the safety warning and monitoring systems in energy storage power stations. They provide early detection of potentially hazardous conditions, allowing for timely intervention and preventing the escalation of thermal events, ultimately ensuring the safety and reliability of the entire energy storage system.
