Mass flow sensors for Hydrogen Fuel Cells

For Hydrogen fuel cells control, measuring the air going into fuel cells.

Product Details

AWM700 Series Mass air flow sensors in Hydrogen fuel cells control, measuring the air going into fuel cells.

For manual, please visit our another website.

https://www.rainbowsensor.cn

Mass airflow sensors alternate to Honeywell sensor AWM720P1, AWM700 Series.

Wide flow range: 12SLPM, 20SLPM, 35SLPM, 50SLPM, 100SLPM, 150SLPM, 200SLPM, 300SLPM, 500SLPM

I2C or Analog output (1-5V)

Introduction

S4000 series of mass air flow sensors are specially designed for the measurement of medical air flow and process control, which based on the MEMS flow sensor core technology , and applied to the kinds of clean and dry gas flow measurement with achievements of facility digitalization, intelligence and high safety compared to the traditional industry. S4000 series have the property of wide range of flow measurement which satisfy different flow measuring requirements with high sensitivity, high reliability and stability and low cost.
S4000 series promotes to development for more intelligence and energy saving.

Application

Ventilator,

oxygen machine,

Gas mask and respirator,

Sprayer,

Continuous positive airway pressure (CPAP) device,

Anesthesia delivery,

Leak detection,

Spectrometer,

Mass flow controller,

Environmental climate control,

Fuel cells control

Feature

Wide flow range 12SLPM-500SLPM
High precision (1.5% F.S accuracy)
Linear output and temperature compensation
Maintain long-term stability with minimal zero drift
Solid-state sensing core (no surface void or fragile membrane), anti-blocking and pressure shock
I2C or Analog output (1-5V)
Fast response time (20ms response time)

Maximum rating

Working temperature: -25 ° C to 85 ° C
Storage temperature: -40 ° C to 90 ° C

Humidity: 0~100%RH*
Impact resistant 100 g
The sensor is resistant to condensation

Function Paremeters

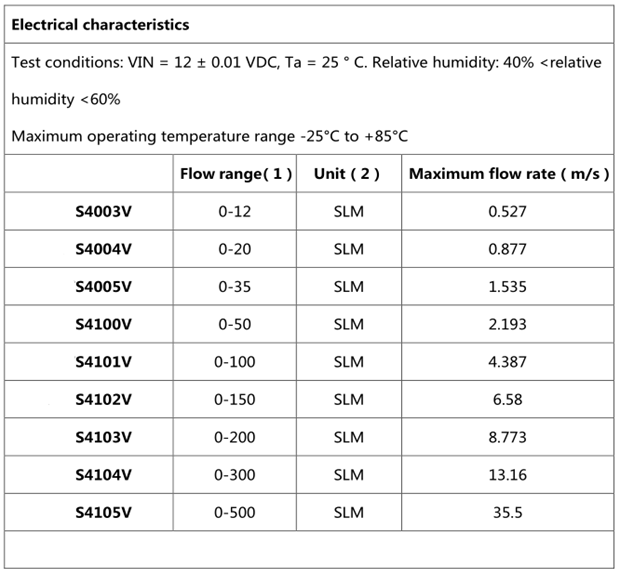

Electrical characteristics
Test conditions: VIN = 12 ± 0.01 VDC, Ta = 25 ° C. Relative humidity: 40% <relative humidity <60% Maximum operating temperature range -25°C to +85°C
	Flow range（1）	Unit（2）	Maximum flow rate（m/s）
S4003V	0-12	SLM	0.527
S4004V	0-20	SLM	0.877
S4005V	0-35	SLM	1.535
S4100V	0-50	SLM	2.193
S4101V	0-100	SLM	4.387
S4102V	0-150	SLM	6.58
S4103V	0-200	SLM	8.773
S4104V	0-300	SLM	13.16
S4105V	0-500	SLM	35.5

Specifications	Minimum	Default	Maximum	Unit
Supply voltage	8	12	24	VDC
Supply current	30		20	mA
Analog voltage output (3)	1		5	VDC
Zero voltage	0.95	1	1.05	VDC
Zero drift	—	—	0.2	%F.S
Resolution (4)	—	0.1	—	%F.S
load	—	100	—	KΩ
Accuracy	—	1.5	2	%F.S
Response time	—	20	30	mSec
Overall material	Silicon carbide, epoxy resin, polyphenylene sulfide, FR4, silicon as a seal

1. Customizable range between 10SLM and 500SLM

2. SLM: Standard liters per minute. Standard conditions: 0 ° C and 1 atmosphere

3. In addition, the two-way airflow test can be customized, and the analog output is correspondingly changed. F(min)—F(max) corresponds to 1-5V output, and 0 flow corresponds to 3V;

4. Includes temperature drift and linearity error

Linear Output

1. The unidirectional airflow mode: (calculation formula)

Flow = [(VOUT -1 V) / 4 V] × full scale flow

For example: S4103V has a full-scale flow of 200 SLM. When the output voltage is read at 2.5V,

the instantaneous flow rate is [(2.5V-1V) / 4V × 200 SLM] = 75 SLM

2. Two-way airflow mode: (calculation formula)

Forward flow = [(VOUT -3 V)/2 V] × full scale flow

Reverse flow = [(3 V- VOUT)/2 V] × full scale flow

Shell Size

Note 1: The connector can be matched with a connecting line according to customer requirements.
