3 in 1 Battery safety monitoring module (CO+VOC+temperature)

PN: BSM-1003MD

Product Details

3 in 1 Battery safety monitoring module (CO+VOC+temperature)

1. Introduction

BSM-1003MD is an integrated module of semiconductor metal oxide gas sensor and temperature sensor based on MEMS technology, which can be used to simultaneously identify and detect the hazardous gas concentration (CO, VOC) and temperature data in the current environment, and set the high and low limit alarm according to each concentration value. The sensors of the BSM-1003MD series modules are multi-channel array gas sensors composed of different material systems, which use specific conditioning circuits and accurate intelligent algorithms to determine the warning level of multiple dangerous gas concentration and temperature data in the current environment.

2. Feature
BSM-1003MD series module can identify and detect dangerous gas concentration content and temperature data at the same time;

the module has high sensitivity, high resolution, low power consumption and long service life;

provide RS485, CAN, analog voltage signal, PWM signal and other output mode, with high stability, excellent anti-interference ability, temperature compensation and excellent linear output;

3. Application

 Energy storage safety detection, which can be used to monitor PACK battery parameters

 Thermal runaway safety early warning and monitoring of lithium-ion batteries

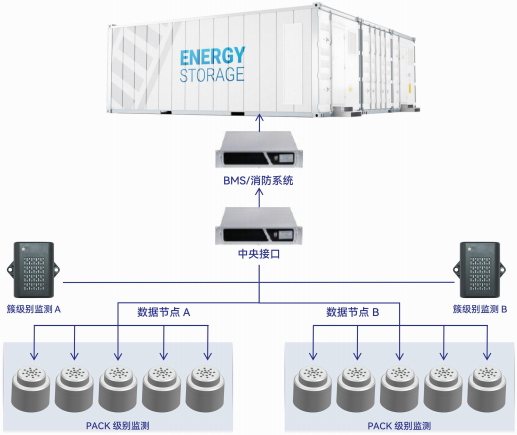

 Safety early warning and monitoring of battery packs in energy storage power station

4. Parameters

4.1

Table 1
