Energy Storage Safety Thermal Runaway Sensor (Smoke+H2+CO+VOC+temperature)
5 in 1 Battery Thermal Runaway Monitoring Sensor (smoke+H2+CO+VOC+temperature)
-
5 in 1 Energy Storage Safety Battery Thermal Runaway Monitoring Sensor (smoke+H2+CO+VOC+temperature)
The 5 in 1 lithium battery safety monitoring sensor module integrated with carbon monoxide, hydrogen, VOC, smoke and temperature sensors. Which is an integrated module of semiconductor metal oxide gas sensor and optical smoke sensor based on Rainbow's MEMS technology.
This product is an early warning device for lithium battery thermal runaway fire and an emergency alarm device during the fire. Detection and alarm in energy storage applications and security detection.
The module can detect carbon monoxide, hydrogen, VOC, smoke and temperature in a complex environment in real time. High and low limit alarms can be set according to the concentration values. The sensor of this series of modules is a multi-channel array gas sensor composed of different material systems, using specific conditioning circuits and precise intelligent algorithms to determine the warning level of various dangerous gas concentrations in the current environment.Features:
High sensitivity
High resolution
Long service life
Resistant to silicon poisoning
Applications:- Energy storage safety detection, which used to monitor battery pack parameters
- Lithium-ion battery thermal runaway safety warning monitoring
- Energy storage power station safety warning monitoring
Specification
Product Name
Li-battery Thermal Runaway Sensor
Model
BSM-1005
Detect Gas
Temperature
VOC
CO
H2
Smog
Range
-40-125℃
0.1-1000ppm
1-1000ppm
1-1000ppm
1-2000μg/m³
Extended concentration
-45-130℃
5000ppm
20000ppm
20000ppm
5000μg/m³
Resolution
0.02℃
<0.5ppm
<10ppm
<1ppm
<10μg/m³
Response time
<2s
<10s
<10s
<10s
<10s
Recovery time
<2s
<30s
<30s
<30s
<10s
Measuring principle
Capacitive
MOS Semiconductor
MOS
Semiconductor
MOS semiconductor
Optics
Supply voltage
24V DC (with reverse connection protection)
Output signal
RS485/PWM
Working temperature
-40~85℃
Working humidity
10-95% RH (no condensation)
Storage temperature
-40-85℃
Storage humidity
< 75% RH
Power consumption
<1.0W
Module size
75*55*30mm(L*W*H)
Lifetime
> 10 Years

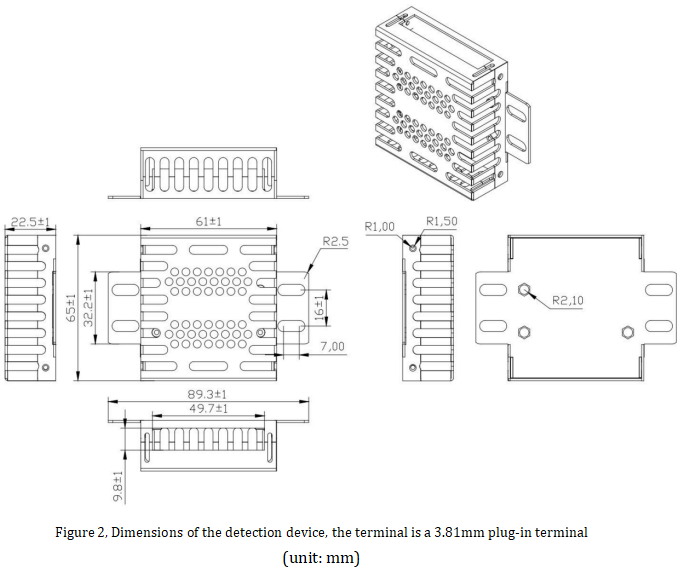

Dimension
