MEMS VOC Sensor

For manual, please visit our another website.

https://www.rainbowsensor.cn

Note: We offer full PCB design and manufacturing services.

Description

MEMS VOC (Volatile Organic Compounds) sensors are micro-electromechanical systems designed to detect the presence of volatile organic compounds in the air. These sensors are small, highly sensitive, and often used in applications such as air quality monitoring, environmental sensing, and indoor air quality control.

VOCs-4 is a miniature metal oxide semiconductor gas sensor based on MEMS micro hotplate technology for detection a wide rang of VOCs gas in air. Sensor production combined with silicon substrate MEMS technology, thin film technology, thick film technology and ceramic packaging technology. The gas sensitive layer is deposited at the top of the hotplate and interdigitated electrodes, resulting in a conductivity dependent on the concentration of harmful gases.

Feature

High sensitivity to VOCs ( 0.1~1000ppm )

Quick response (~10Sec.)

Very low power consumption ( ~35mW )

Small size ( 3.8mm × 3.8mm × 1.5mm )

Long operating life ( ~10 Years )

Reflow soldering

Applications

• Indoor Air Quality Monitoring: Detecting harmful VOCs in homes, offices, and public spaces.
• Industrial Safety: Monitoring VOC levels in industrial environments to ensure worker safety.
• Environmental Monitoring: Tracking VOC emissions in outdoor environments.
• Consumer Electronics: Integrated into smart home devices, air purifiers, and HVAC systems.

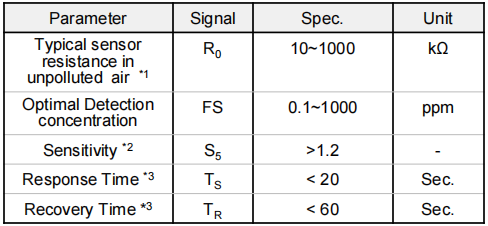

Parameter

Pin connections

Pin   Function

1    Heater Electrode 1

2    NA

3    Sensor Electrode 1

4    NA

5    Heater Electrode 2

6    NA

7    Sensor Electrode 2

8    NA
