We specialize in manufacturing high-quality MEMS gas sensors and offer complete PCB design and manufacturing services based on our MEMS sensor technology.  To ensure seamless integration, optimized performance, and cost-effective production.

MEMS (Micro-Electro-Mechanical System) sensor is a miniature device that integrates microscopic mechanical and electrical components on a single silicon chip. These sensors can detect physical or chemical changes—such as pressure, motion, temperature, or gas concentration—and convert them into electrical signals for measurement and analysis.

In gas detection applications, MEMS sensors typically use a sensitive layer that reacts when specific gas molecules are present. For example, the target gas interacts with the sensing material, causing changes in properties like electrical resistance, capacitance, or resonant frequency. The MEMS structure detects these changes and translates them into a digital or analog output. This allows for real-time, accurate monitoring of gases such as hydrogen (H₂), carbon monoxide (CO), volatile organic compounds (VOCs), or ammonia (NH₃).

MEMS gas sensors are widely used in industrial safety, environmental monitoring, battery safety, and smart home devices because they are:

Compact and lightweight – easy to integrate into small systems

Highly sensitive – capable of detecting gases at low concentrations

Low power consumption – ideal for portable and IoT applications

What We Offer

• MEMS Gas Sensors

  • Options for H2S, CO, VOCs, NH3, H2, and more (single-gas or multi-gas arrays)

  • High sensitivity with fast response/recovery for early-warning applications

  • Low power consumption for battery-powered and IoT devices

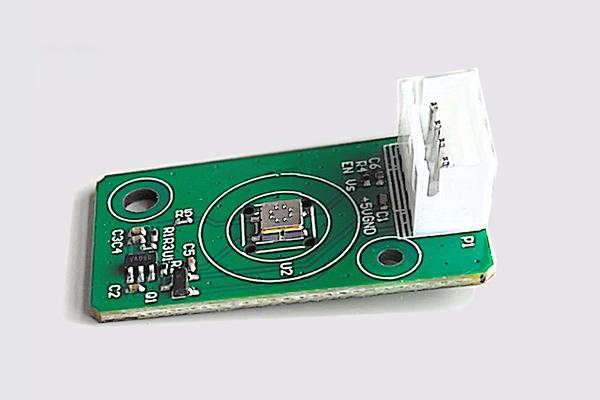

• Customized, Sensor-Optimized PCBs

  • Schematic & layout tuned for your target gas, range, and environment

  • Signal conditioning, AFE, ADC, and on-board MCU as needed

  • Interfaces: I²C / UART / SPI, 3.3 V or 5 V supply, and configurable pinouts

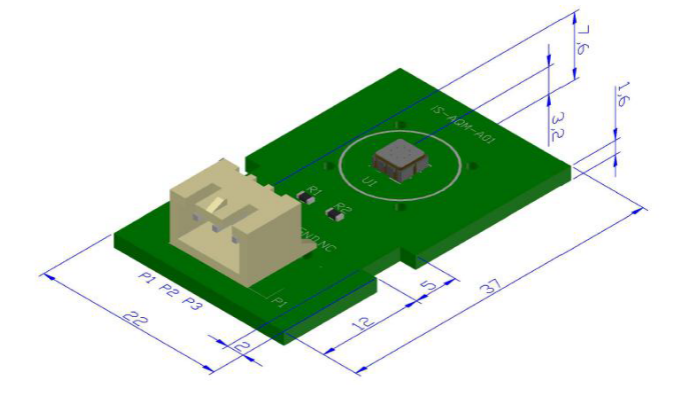

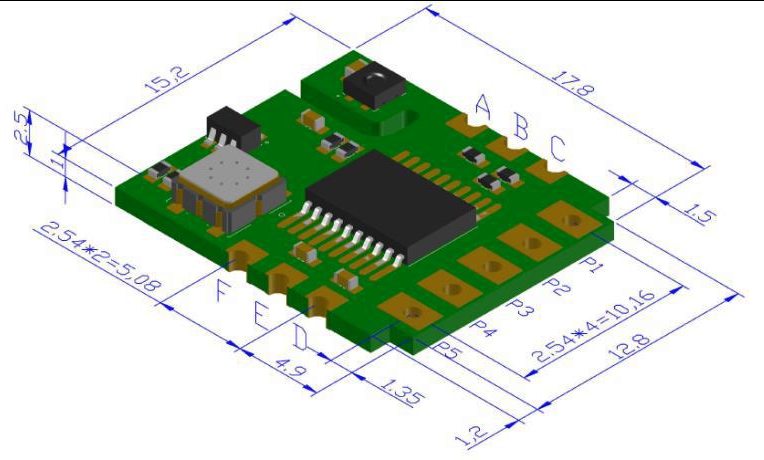

  • Mechanical design for easy drop-in integration (mounting holes, connectors, headers)

• Manufacturing & Assembly

  • Prototype, pilot, and volume builds with AOI/ICT/functional testing

  • Full traceability (BOM, revision control) and robust ESD/EMC practices

• Firmware, Algorithms & Calibration

  • Temperature/humidity compensation, baseline correction, and filtering

  • Optional on-board diagnostics and self-test routines

  • Factory calibration and calibration data export (e.g., lookup tables/coefficients)

• ODM/OEM Services

  • Private-label modules and customized housings

  • Enclosure guidance and integration with your BMS or gateway

  • Optional wireless add-ons on request (e.g., BLE, LoRaWAN, Wi-Fi)

Technical Highlights (Typical Options)

• Detection ranges: ppm to %-vol (application-dependent)

• Output formats: digital (I²C/UART/SPI), optional analog voltage

• Power: low-power standby modes for long battery life

• Environmental: extended temperature/humidity options for harsh conditions

• Reliability: burn-in, drift characterization, and lifecycle stability testing

Deliverables You Receive

• Gerber/ODB++ files, schematics, PCB stack-up, and 3D models

• Compiled firmware + source (if contracted), API/driver and protocol docs

• Factory calibration report and QC/test records

• BOM with approved alternates and lifecycle notes

• Integration guide (electrical, mechanical, and thermal best practices)

Typical Applications

• Battery safety & thermal runaway early warning (ESS, EV packs, robotics)

• Industrial safety & fixed gas detection (plants, wastewater, refineries)

• Environmental & indoor air quality (IAQ, HVAC, smart buildings)

• Hydrogen safety (production, storage, fueling infrastructure)

• Smart appliances & consumer IoT (compact, low-power sensing)
