MEMS alcohol EtOH gas sensor

Product Details

For manual, please visit our another website.

https://www.rainbowsensor.cn

Note: We offer full PCB design and manufacturing services.

MEMS alcohol gas sensor

Description
Alcohol sensor is a miniature metal oxide semiconductor gas sensor based on MEMS micro hotplate technology for detection a wide rang of organic solvent vapor in air. Sensor production combined with silicon substrate MEMS technology, thin film technology, thick film technology and ceramic packaging
technology. The gas sensitive layer is deposited at the top of the hotplate and interdigitated electrodes, resulting in a conductivity dependent on the concentration of harmful gases.

Features:
High sensitivity and large dynamic range to organic solvent vapor ( 1~1000ppm )
Quick response (~10Sec.)
Very low power consumption ( 40~42mW )

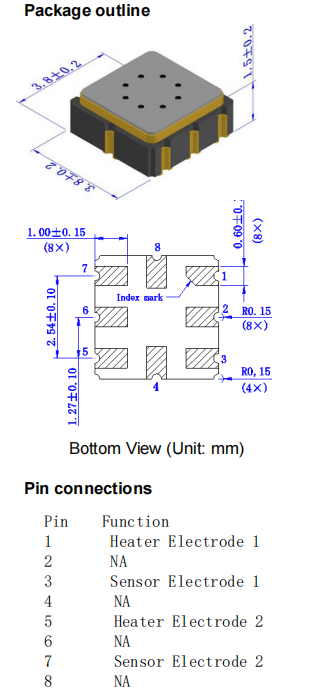

Small size ( 3.8mm × 3.8mm × 1.5mm )
Long operating life ( ~10 Years )
Reflow soldering

Applications
Organic solvent vapor leakage alarm
Alcohol detection
IoT, wearable devices, smart home

Performance parameter
