Flexible film pressure sensor RKF03
-
Flexible film pressure sensor RKF03
1.Product introduction
Pressure-sensitive touch is a new type of touch control that is different from traditional touch control. It can accurately detect the amount of pressure applied while providing precise positioning of the touch pressure point, which can provide a multi-dimensional information portal for human-computer interaction; Compared with capacitive touch control, it can effectively solve the problems of false touch and ineffective touch with wet hands.
This flexible thin-film pressure sensor has high sensitivity, fast response speed, and fully flexible design, which can easily adapt to the inner surface of complex structures on flat or curved surfaces.
2.Features
Designed and developed specifically for touch pressure sensing solutions; high sensitivity, can respond to pressures below 10 gf; flexible and resistant to bending; based on flexible nanomaterials, response time is less than 5 ms; long life, can withstand repeated presses more than 1 million times; Low power consumption, close to open circuit state when standby; customizable sensor shape; customizable sensor range and lowest response point.
3.Application
Biometrics, human-computer interaction, intelligent robots, Wearables, Medical Devices, Healthcare, Stylus, TWS earphone, on-off key.
4.Product description
4.1Technical index
Range
5-60 gf
thickness
0.4 mm
dimension
See size chart
Response point
<5 gf
Repeatability
+-15% (50% load)
consistency
+-15% (same batch number)
Linearity
R2>0.98
Durability
>1 million times
Initial resistance
>1 KΩ (no load)
Response time
<5 ms
Test voltage
Typical value 3.3 V
Operating temperature
<60℃
Electromagnetic interference
No

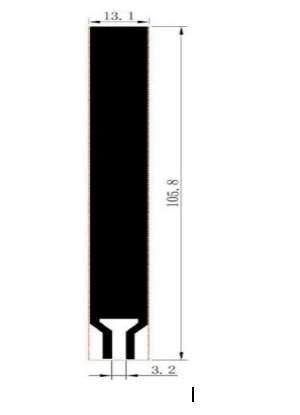

4.2 Product size
4.3 Force sensitive characteristics
