Tractor GPS auto steering system

1.Product instroduction

Tractor GPS auto steering system is a comprehensive system integrating satellite reception, positioning and navigation, and automatic driving.10-inch large-screen on-board computer display, with various functions such as positioning, route planning, operation area trajectory drawing, area calculation, and historical records;Dual-antenna positioning and orientation, using independent and innovative high-precision positioning algorithm, operation accuracy ±2.5cm; rich operation scenarios, suitable for various types of operations such as planting, spraying, fertilizing, and ditching; It is easy to install, easy to operate, remote one-key assistance, and 7*24 hours service, which brings unprecedented flexibility to the intelligent operation of agricultural machinery.

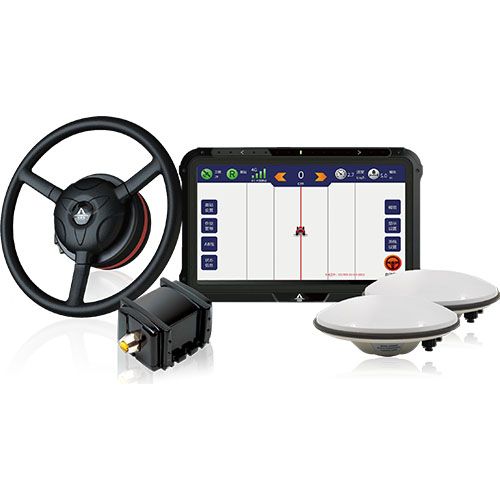

2.Product components and features

 2.1Intelligent driving controller (tablet computer)

• 1.Built-in high-precision GNSS board, radio station, network communication, integrating satellite reception, positioning and orientation, and control
• 2.4G full Netcom, dual SIM
• 3.IP65 protection level, 10-inch large-screen on-board display, easy to adjust the operation mode and control the automatic driving state. The highlight environment is visible
•
• 2.2 Electronically controlled steering wheel
• Large torque to meet various harsh conditions
• High speed, fast line entry to improve work efficiency
• High precision, guarantee the quality of work
• Versatility, suitable for various vehicles
• Easy installation and high stability
•
• 2.3 Attitude sensor
• 1.High performance, high precision, low power consumption, sealed design.
• 2.Small size, simple installation, fast start-up, no need for debugging
•
• 2.4 GNSS antenna
• Covers four major systems (BDS, GPS, GLONASS, GALILIE), full frequency band
• Multi-feed point design, equipped with anti-multipath choke plate, waterproof, anti-ultraviolet
• Stable phase center, high positioning accuracy, good signal reception at low elevation angles

3.Specifications

• Project	unit	Design value
  Model Name	/	TA100BD-2.5RD Beidou Agricultural Machinery  Automatic Navigation and Driving System
  Steering control type	/	Torque motor control
  Processor model	/	QuadCore-T3
  RAM	GB	2
  hard disk	GB	16
  Operating system and software version	/	Linux
  Display terminal size and resolution	/	7 inch 1024×600 pixel
  Interface type	/	RS-232
  Data input and output protocol	/	NMEA
  Satellite receiver type and frequency	/	R25,BDS B1/B2+GPS L1/L2+GLONASS L1/L2+GALILEO
  Satellite receiver motherboard firmware version	/	Build19222
  Satellite receiver  channels	/	432 channels
  Satellite receiver interface type	/	BDS+GPS+GLONASS+GALILEO
  Satellite receiver	/	Single station RTK, network RTK
  differential type
  Satellite receiver data update rate	Hz	10

• For different customer needs, we offer a series of smart agricultural solutions:

  Soil sensor（RS485 or LoRaWAN output）50--300USD/set

  Agriculture spraying drone，20L 7300USD/set, 30L 7800USD/set, 50L 11000/set

  Tractor auto steering system, 3000USD/set

  Agricultural machinery panoramic driving assistance system, 190USD/set

• Driverless tractor 180 hp 55,000USD   210 hp 57,000USD    240 hp 78,000USD

•
