360 degree around view camera driving assistance system / Reverse Parking Assistant System 4 Sensor
-
Car display four-way segmentation integrated 360°panoramic driving assistance system
1.product profile: analog hd image display clear and delicate, using more advanced bright color separation, signal filtering, analog filtering technology, compare the traditional simulation display products, image reduction is better, image quality has a qualitative leap and promotion, products into a new hd mode, color, clarity into a new level.
2.product characteristics: AHD high-definition display, wide voltage, reversing marking, reversing delay, independent mirror image, energy-saving power supply, four-way video, H.265 Compression mode, independent video recording, video recording and storage.

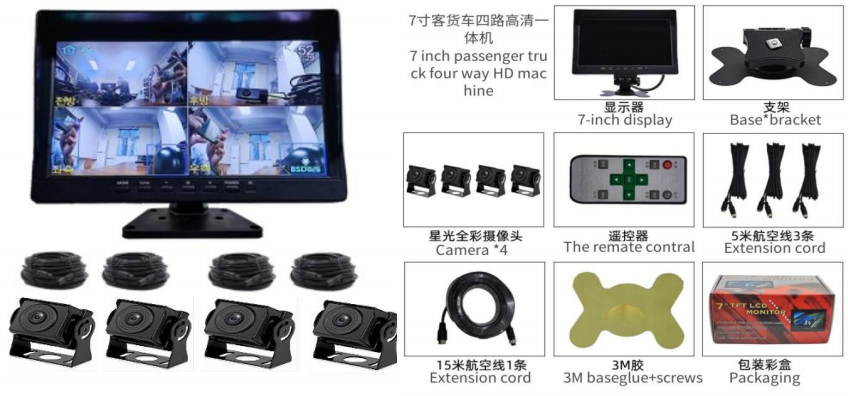

3. Product list
IV. Product technical parameters
indicator
camera
input voltage:
12-36V
imaging sensor
1/2.9＂ GC2053+FH8536H
output voltage:
±12V
signal system
PAL/NTSC
incoming signal:
Four-way road 720P
Effective pixel
1280 (horizontal) 720P (vertical)
Point screen type:
7-inch IPS
minimal illumination
Colour 0.01Lux@ (F1.2, AGC ON)
Screen resolution:
1024*600
Day and night mode
Starlight color
Image effect:
Starlight full color
noise-signal ratio
38dB
Video encoding format:
H.265
electronic shutter
From 1 / 50 (1 / 60) sec to 1 / 50,000 seconds
Video / playback:
support
Video standard
AHD
Video resolution:
1280*720/640*480
frame rate
50Hz:25fps(1280*720)；60Hz:30fps(1280*720)
Video recording file size:
Single channel file about 24M
Lens interface
CS
memory:
Maximum support, 256G
camera lens
Built-in fixed HD lens 2.1mm lens
Image segmentation:
Single picture / two split / four split
The lens Angle
Horizontal 135℃, diagonal 165℃, vertical: 75
Time display settings:
support
denoise
Support 3D noise reduction
Time watermark:
Support switch
Backlight compensation
voluntarily
audio frequency:
Support for audio recording and playback
synchronous mode
inter-sync
overturn:
support
video output
1-Way AHD HD Video Output, 1Vp-p Composite Output (75 Ω / BNC)
detonate by contact:
Reverse priority, multiple route trigger
OSD menu control
support
Reverse line:
Mode is optional, and supports the switch
transmission distance
Support for ordinary 75-3 coaxial nondestructive transmission, high-speed rate, long-distance, real-time transmission
Reverse delay:
support
classification of waterproof
IP68
language:
Default English,
Other languages are available.
source
DC12V±10%
size:
2558*165*33mm
work environment
Temperature: -30℃ ~80℃ Humidity: 0~95% RHG
working temperature:
-20℃ ~ +70℃
V. Conventional desktop keys & infrared remote control:
Key function: 1, Power key: on and off function, the machine is in standby mode;
2. Function key;
3. Function underkey;
4. Single key;
5. OK key: confirm the function;
6. Channel switching
Operation instructions: enter the main menu according to MENU, switch between "+ /", and enter the submenu by OK. The menu is divided into:
Time setting: adjust the date and time;
Display settings: adjust the brightness, contrast, saturation, color degree;
Playback mode: can only enter the card, select through the menu or long press OK key, can play back and delete video files; split setting: set various split display mode, two split / three split / four split display;
System settings: set the reversing line, reversing delay, language, flip, camera resolution, video file time, time watermark, single image mirror, SD card formatting, version, etc.

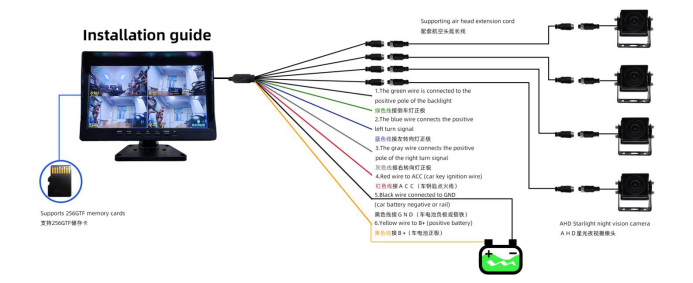

7. Wiring and installation schematic diagram
1. Normal power (yellow) (3A): connect the battery on the car, insurance 3A and 3A (still electricity after flameout).
2. Iron (black) (GND): the ground on the car can be placed on the iron frame of the distribution box.
3. Ignition (red) (ACC): connected to ACC, there is no power when ignition, there is power after ignition.
4. Each camera line (CH1-4) corresponds to one camera (quadruple Figure A)
5. Reverse trigger is trigger channel 2, with the highest priority.
6. When the reverse trigger is triggered, the access channel 1 will not switch the trigger channel immediately until the reverse trigger is completed.
7. When there is no reversing trigger, the priority is arranged according to the access order.
