Lithium Battery Thermal Runaway - Thermal Runaway Sensor

Built-in Temperature compensation and external Humidity compensation available;
Optional filter cover, anti-VOCs gas interference;
  •

    For manual, please visit our new website.

    https://www.rainbowsensor.cn



    For each sensor module,

    1. Built-in Temperature compensation and external Humidity compensation available.
    2. Another version of sensor module with 5V voltage.

    3. We offer full PCB design and manufacturing services.

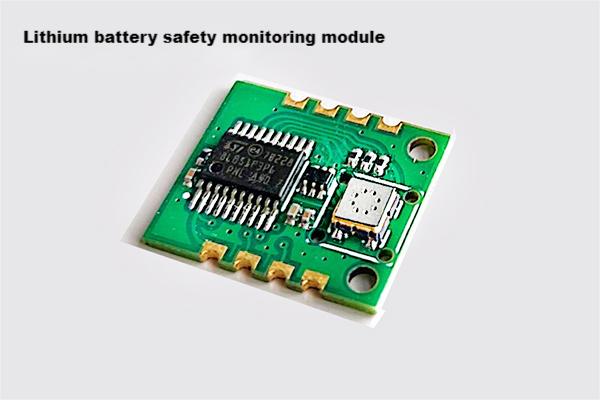

    Lithium Battery Thermal Runaway - Thermal Runaway Sensor



    Description
    Based on MEMS gas sensor, the battery monitoring sensor is used to monitor the gas production and temperature data during the thermal run away process of the battery, and provides early warning signals.
    The data is available via I2C bus or UART series port.
    Thermal Runaway Sensor can be protected by covering a PTFE filter membrane. The sensor module can be assembled by SMT or removable terminal plug connection.
    .
    The benefits and features of the module are listed below:
    Low-cost multi-factor output, provide reliable early warning for battery thermalrunaway
    High sensitivity and fast response to CO/H2 , can eliminate the interference of VOCs by adding a filter cover
    Built-in Temperature compensation and external Humidity compensation available
    Low power consumption
    Small size for convenient installation
    Automatic baseline correction
    The baseline settable, the storage state settable
    Robust design, excellent long-term stability
    Highly flexible assembly mode and communication interface

    Performance parameter

    Item

    Remark



    Sensor Principle

    MEMS metal oxide sensor



    Sensing range



    0-5000 ppm CO equivalents

    0-5000 ppm H2 equivalents

    -20 ~ +100℃ temperature

    Warm-up time

    3 min.



    Communication

    I2C or UART



    Calibration



    Automatic baseline correction,

    Baseline resettable, storage status settable (stored by default)
